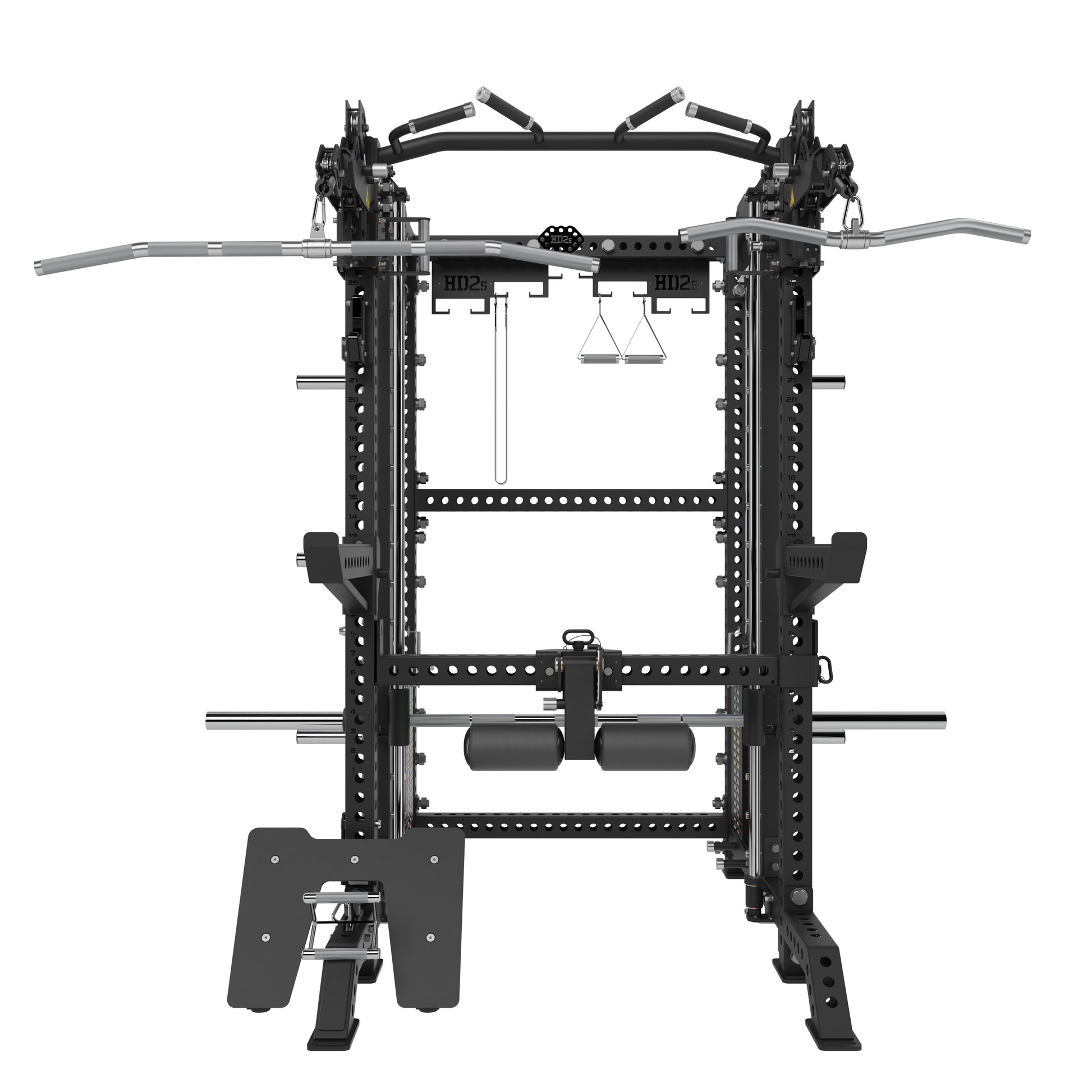

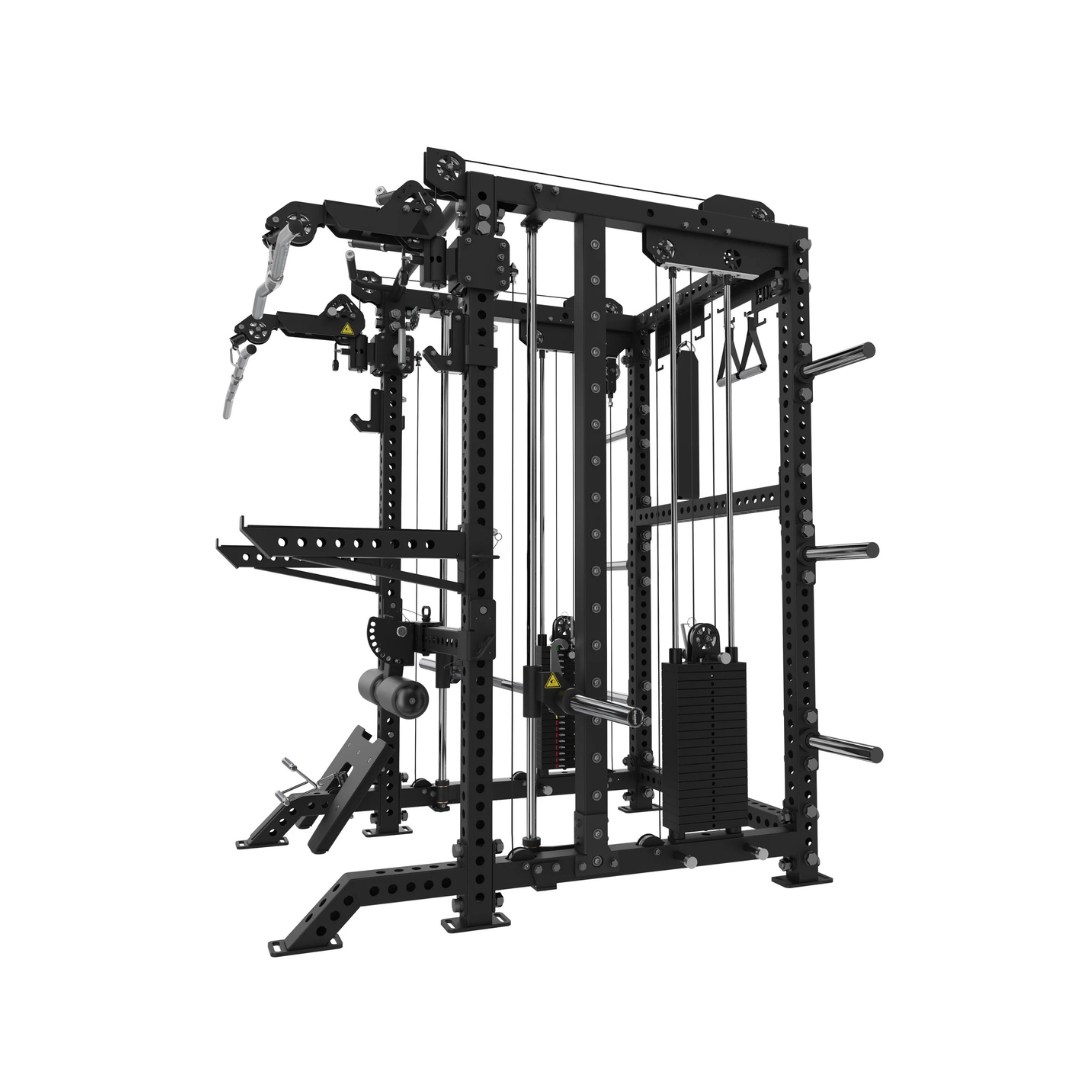

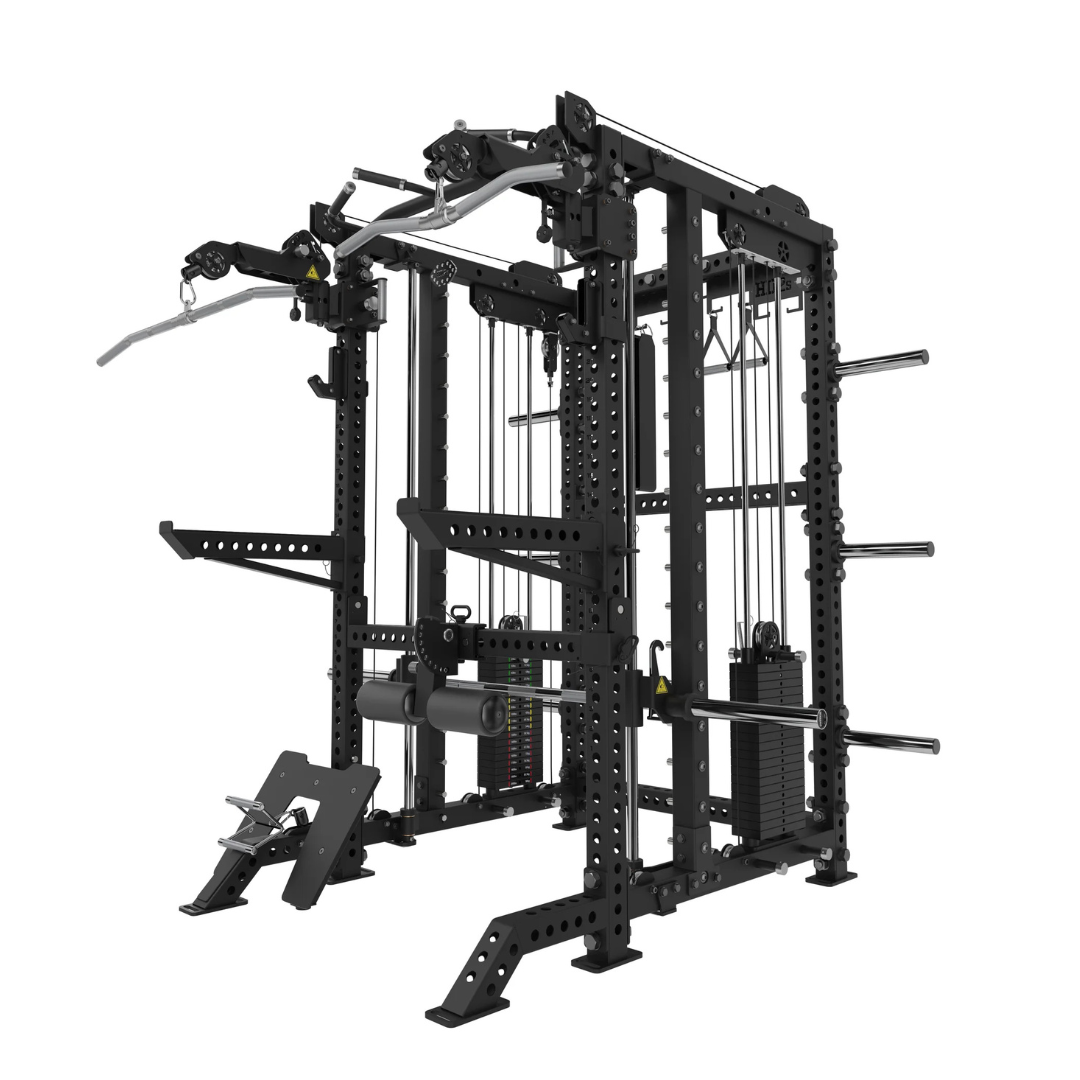

HD2-S Smith Machine All-In-One
HD2-S Smith Machine All-In-One
HD2-S Smith Machine All-In-One

HD2-S Smith Machine All-In-One

$3,699.00
$4,899.00
  • Custom Low Range Smith Machine
  • 11 Gauge, 3X3 Frame W/ 1" holes
  • 2-Way Adjustable Articulating Arms
  • Lat Pulldown Hold Down Included
  • 1:1 Ratio Dedicated Low Row
  • Assisted Pullup Station
  • Dual 200lb Weight Stacks
  • Lifetime Parts Warranty
  • Guarantee Safe
    Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4
SPECSHD2-S
Frame Size11 Gauge, 3X3 w/ 1" Holes
Dimensions (depth x width x height)69" x 81" X 88"
Total Machine Weight1280lbs
PulleysAluminum
Max Width Articulating Arms81"
Weight Stacks200lb x 2 (Steel)
Cable Test2000lb Nylon Coated Steel Aircraft Cables
J-Hook Weight Capacity1200lbs
Safety Spotter Weight Capacity1000lbs
Residential Warranty Lifetime parts warranty (excludes accessories)
Commercial Warranty5 year parts warranty  (excludes accessories)
Smith Machine Capacity600lbs
Smith Machine Racking Positions18
Smith Machine Lowest Range9.75"
Smith Machine Highest Range76.5"
SPECSHD2-S
Frame Size11 Gauge, 3X3 w/ 1" Holes
Dimensions (depth x width x height)69" x 81" X 88"
Total Machine Weight1280lbs
PulleysAluminum
Max Width Articulating Arms81"
Weight Stacks200lb x 2 (Steel)
Cable Test2000lb Nylon Coated Steel Aircraft Cables
J-Hook Weight Capacity1200lbs
Safety Spotter Weight Capacity1000lbs
Residential Warranty Lifetime parts warranty (excludes accessories)
Commercial Warranty5 year parts warranty  (excludes accessories)
Smith Machine Capacity600lbs
Smith Machine Racking Positions18
Smith Machine Lowest Range9.75"
Smith Machine Highest Range76.5"
     The HD2-S takes all the same great features from HD2 and adds a commercial grade, high capacity smith machine with more range of motion than competing models. Our custom design has a starting bar height of 9.75" which is much lower than most popular models which start between 15" and 19". This low starting point is desirable for users looking to do low range exercises such as deadlift and hip thrust.

We added the HD2 to our home gym lineup to fill the need for our clients looking for functional training arms. Now between the HD1 and HD2, you have the best of both worlds to choose from. Both providing extreme value and unique features on the highly sought after 3X3 frame/11 gauge/1” hole platform which gives you universal fitment to purchase aftermarket attachments from us or other top brands using this platform.

As with all our home gyms, we aim to provide as much value as possible and include most of the upgrade’s customers want, limiting the need to buy optional attachments and upgrades after purchase. The HD2 includes a front mount accessory cross bar, a lat pulldown hold down, low row foot plate, multiple grip pullup bar, 6 plate storage horns, extension feet, j-cups, spotter arms, 3 rear cross bars for added storage and a premium cable accessory kit.

The standard multi grip pullup bar can limit certain angles for the articulating cable arms as they do for many brand models. Swapping to our optional straight pullup bar can open up access to those particular angles if desired.

9f65b47e-6636-4836-9865-523a5a575e6e
fe8d35c2-1256-40d3-9372-0c4aa496dc47
Copy_of_Copy_of_Copy_of_Subtitle_2
Standout Features & Included Accessories
Low Range Smith Machine
3D Articulating Arms
Removable Front Accessory Cross Bar
Lat Pulldown Hold Down
Dual Connect Bracket for 1:1 Lat Pulldowns
6 Plate Storage Horns
Assisted Pullup Station
Dedicated 1:1 Row Station
Removable Row Foot Plate
Steel Close Grip Row Attachment
Weight Stack Band Pegs
Multiple Grip Pullup Bar
3 Rear Cross Bars - Added Storage
Premium Sandwich J-Hooks & Spotters
Aluminum Lat Bar
Aluminum Curl Bar
Aluminum D-Handle x2
Extension Feet - Needed to use safety bars - Not all brands include
Standout Features &  Included Accessories
Low Range Smith Machine
3D Articulating Arms
Removable Front Accessory Cross Bar
Lat Pulldown Hold Down
Dual Connect Bracket for 1:1 Lat Pulldowns
6 Plate Storage Horns
Assisted Pullup Station
Dedicated 1:1 Row Station
Removable Row Foot Plate
Steel Close Grip Row Attachment
Weight Stack Band Pegs
Multiple Grip Pullup Bar
3 Rear Cross Bars - Added Storage
Premium Sandwich J-Hooks & Spotters
Aluminum Lat Bar
Aluminum Curl Bar
Aluminum D-Handle x2
Extension Feet - Needed to use safety bars - Not all brands include
     We built in a 1:1 cable ratio dedicated low row station which was aimed to solve the often awkward or “not heavy enough” low row setup commonly found on functional trainer arm models. This heavy cable ratio station gives you access to a 200lb low row with minimal setup time. An HD adder pin can be added to increase the weight capacity up to 500lbs.

Weight stack band pegs are added to both weight stacks to allow for a dynamic load. See overview video for a banded weight stack demonstration.

The HD2 is ideal for anyone looking to get creative with an ultra-wide functional trainer paired with a top tier squat rack. While you can still setup heavy compound lifts such as a row and lat pulldown on the HD2, if that is the primary focus then HD1 should be considered.

*Disclaimer: While our roller system is very smooth and works extremely well, functional trainer arms are heavier by design and require two hands to comfortably adjust up and down the rack.
