The HD1 series is our flagship design that we consider to be the best value for a properly spec’d and built machine. The HD1 and HD1-S are the same machine, but the S includes a smith machine. If you’re tight on space, check out the BX2 which is our compact version. The BX2 includes most of the same great features.
A commercial grade, high capacity smith machine with more range of motion than competing models. Our custom design has a starting bar height of 11" which is much lower than most popular models that start between 15" and 20". This low starting point is desirable for users looking to deadlift or hip thrust. A high finish point of 78" will allow most users to accomplish standing overhead press or push press.
At the heart of the HD1-S you’ll find the sought after 7.5FT, 11 gauge, 3X3 frame with 1” holes which brings you maximum durability and aftermarket capability for any additional attachments you may want to add in the future.
The cable section delivers well thought-out functionality. The 2:1 cable ratio on the functional trainer gives buttery smooth action for all your accessory movements. The dedicated high towers deliver a heavier load with a 1:1 cable ratio for slower, heavier pulls. This station not only gives you twice the usable weight but also solves the common overhead alignment problem found on standard machines. The HD1S delivers a proper form lat pulldown, directly overhead with a heavy cable ratio and lat seat included.
1:1 & 2:1
Cable Ratio
11" - 78"
Smith Range
600 lb
Smith Machine Capacity
1375 lb
Total Machine Weight
3 x 3 Expandable Ecosystem
Compatible with all HD attachments
Industry Leading Warranty
Built strong and backed with maximum coverage
Custom Low Range Smith
600 lb capacity with 15 racking positions
Detailed information
Specifications & What’s Included
Specs
What’s included
Footprint
Dimensions
Base depth (front foot to back foot)
69"
Max width (smith bar)
88"
Width @ rear plate storage
70.5"
Front upright width (olympic spec)
47.25"
Max height (high pulley brackets)
90"
Pullup Bar Height
88"
Upright size (metric)
3" × 3"
Steel gauge
11 gauge
Mounting hole size
1"
Hole Spacing
2" oc
Total machine weight
1375lb
Cable System
High tower ratio
1:1 @ 115% (200lb = 230lb)
Adjustable trolley ratio
2:1 @ 50% (200lbs = 100lb)
Cable type
2000lb test aircraft
Pulley material
Aluminum
Weight stack material
Steel
Guide rod type
Solid
Guide rod recommended lubricant
100% silicone spray
Smith Machine
Maximum capacity
600 lb
Starting weight
40lb
Racking positions
15
Lowest bar range
11"
Highest bar range
78"
Highest bar resting position
73.25" (walk under height)
Movement system
Linear bearing
Squat Rack
J-hook max capcity
1200lb
Safety bar max capacity
1000lb
UHMW protection
Yes
J-hook style
Sandwhich
Warranty
Residential
Lifetime parts warranty, accessories excluded
Light Commercial
Three-year parts warranty, accessories excluded
Loaded with more from day one.
Integrated Stations
Low-range smith machine
2:1 Functional trainer
Assisted pull-up station
Dual lat pulldown towers
Low row station
Free weight-barbell rack station
Rack & Safety
Premium sandwich J-hooks
Safety spotters
Extension feet
Included Accessories
Lat pulldown seat
Aluminum lat pulldown bar
Aluminum tricep/curl bar
Two aluminum D-handles
Tricep rope
Steel close-grip row attachment
Pullup Strap
Row foot plate
Barbell storage hook

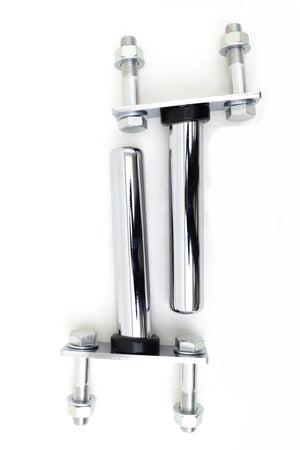

6 Plate storage horns
Rubber feet floor protection
Upgraded multi grip pullup bar
Schematic
Assembly Guide
Build with confidence and follow along step by step
FAQ
Common Questions
Do you offer assembly?
We do! There is an assembly link in the shopping menu of our website if you would like to get a quote or hire an installer. We recommend waiting to purchase that service until your machine arrives.
How does this compare to the BX2?
The BX2 is essentially a compact version of the HD1-S. The biggest difference is that the HD models have a much larger frame which is designed to be compatible with aftermarket attachments that dont work on smaller frames. The HD models are also taller which can work better for taller users. We built a lot of the same features into the BX2 as we did on the HD models and the BX2 comes with a lot of the same attachments. Because the BX2 uses a compact smaller frame, it is not compatible with aftermarket attachments. That being said, the BX2 is a beast and we consider it to be one of the best options for compact spaces. It to comes with a low range smith, 1:1 & 2:1 cable ratios and high capacity. If space is not a concern, the HD models will give a little more convivence and be more upgradable. If you have a diverse family, in your older years or working around injuries, the BX2 could be a better choice as everything on that machine is lighter and easier to set up.
How wide are the uprights?
All Olympic squat racks are about 47" wide, across all brands and models because an Olympic barbell determines the width. The space between the barbells sleeves. HD1-S width is 47.25"
Why do some pictures show trolley handles on the inside and some on outside?
Like many parts of the HD models, its preference and can install either way. The user manual will recommend mounting them to the inside which keeps them out of the way of plates during free weight training. Most find them avoidable and prefer exterior mounting. If you change your mind after install, you can disassemble the trolley and reverse it without taking apart the machine. It can easily be done with 2 sets of hands in under 5 minutes.
What other parts have install preference?
Trolley handles inside or out.
Pull-up bar fat grip in the front or rear.
Rear cross bar placement.
Weight stack stickers on the inside or outside.
Low row foot port on the left or right side.
Safety spotters on the smith or left off.
Barbell storage hook in the rear, side or interior.
Plate storage on the sides, rear, mounted inside the frame on back cross bars or mounted on the wall.
Do you offer heavier weight stacks?
We don't, because it eats valuable cable travel needed for a 1:1 ratio. You can use the HD adder pin listed in the gym attachments category to add additional weight to the stack. Keep in mind, our towers are @ 115% which gives a true 230lb pull.
What about leg extensions and leg curls?
We will not be making a rack attach leg ext/curl. They take up a lot of space when not in use. They are more difficult to install because they are heavy and harder to get on because you have to mount them high above the cable for full range. For those reasons most customers prefer a bench attached leg option that comes off easy and smaller to store when not in use. Or a dedicated leg ext/curl machine if you have the space.
Can the row plate be mounted on either side?
Yes, you can choose which side you install the port on during the assembly process.
