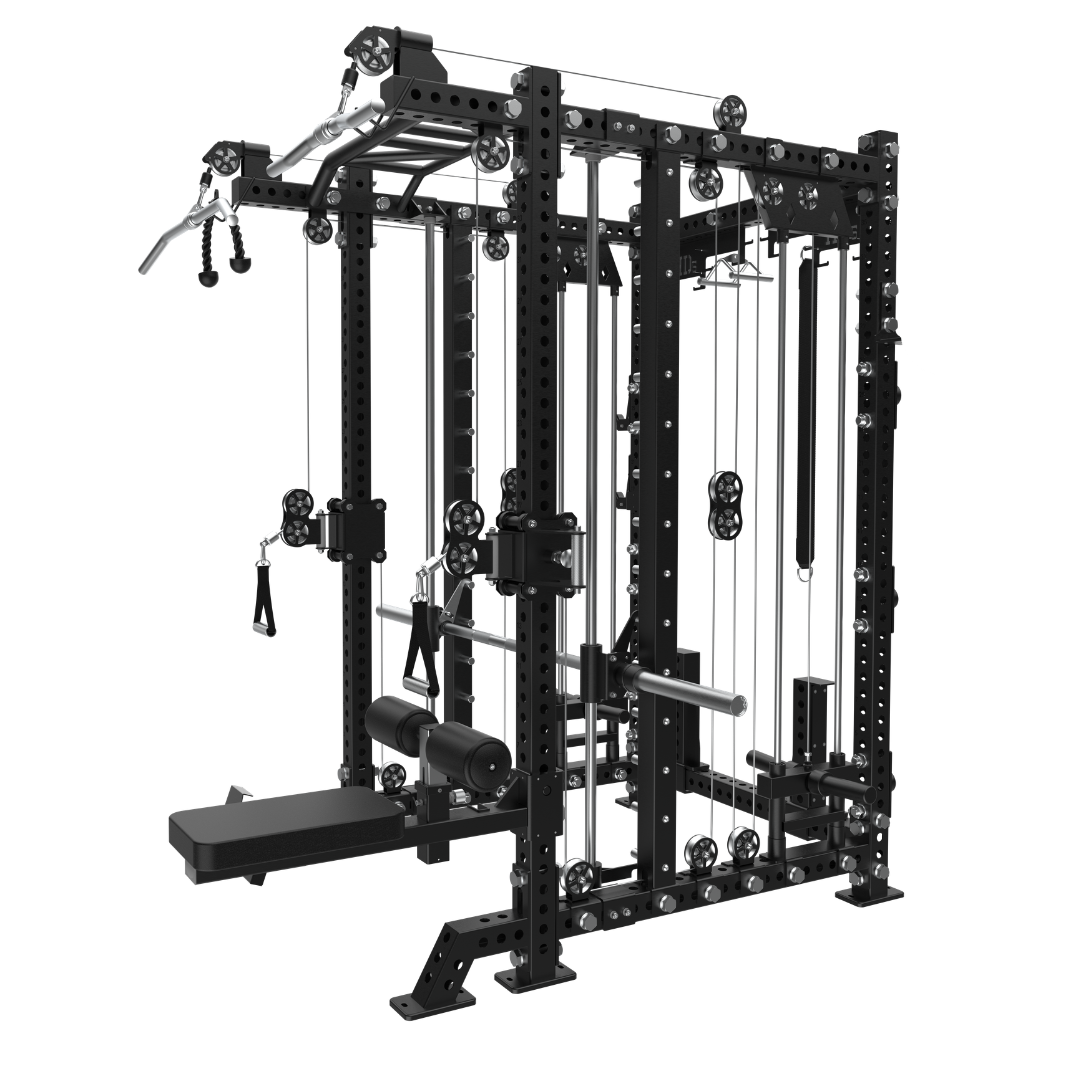

Attention: This video was filmed when the wide body smith machine kit was optional. It is now included and the smith machine guide rods and racking column have been moved to the outside as shown in the main product photo.
Product Overview
High performance in a value package
The HDS brings high performance features not previously seen in the value pricing categories. HDS shares all the popular features of its big brother HD1-S but in a plate loaded format. 3x3 framing with 1" holes allow for vast aftermarket options and is compatible with all Blazzed HD series attachments.
With a 1/1 ratio, heavy lat pulldowns and low rows are ready to go. The cable system will surprise you, it’s exceptionally smooth for a plate loaded model. Our signature high pulley towers offer added range of motion with correct alignment for overhead lat pulldowns. We recommend using regular olympic plates with a plate loaded system as bumper plates take up too much space on weight trolleys.

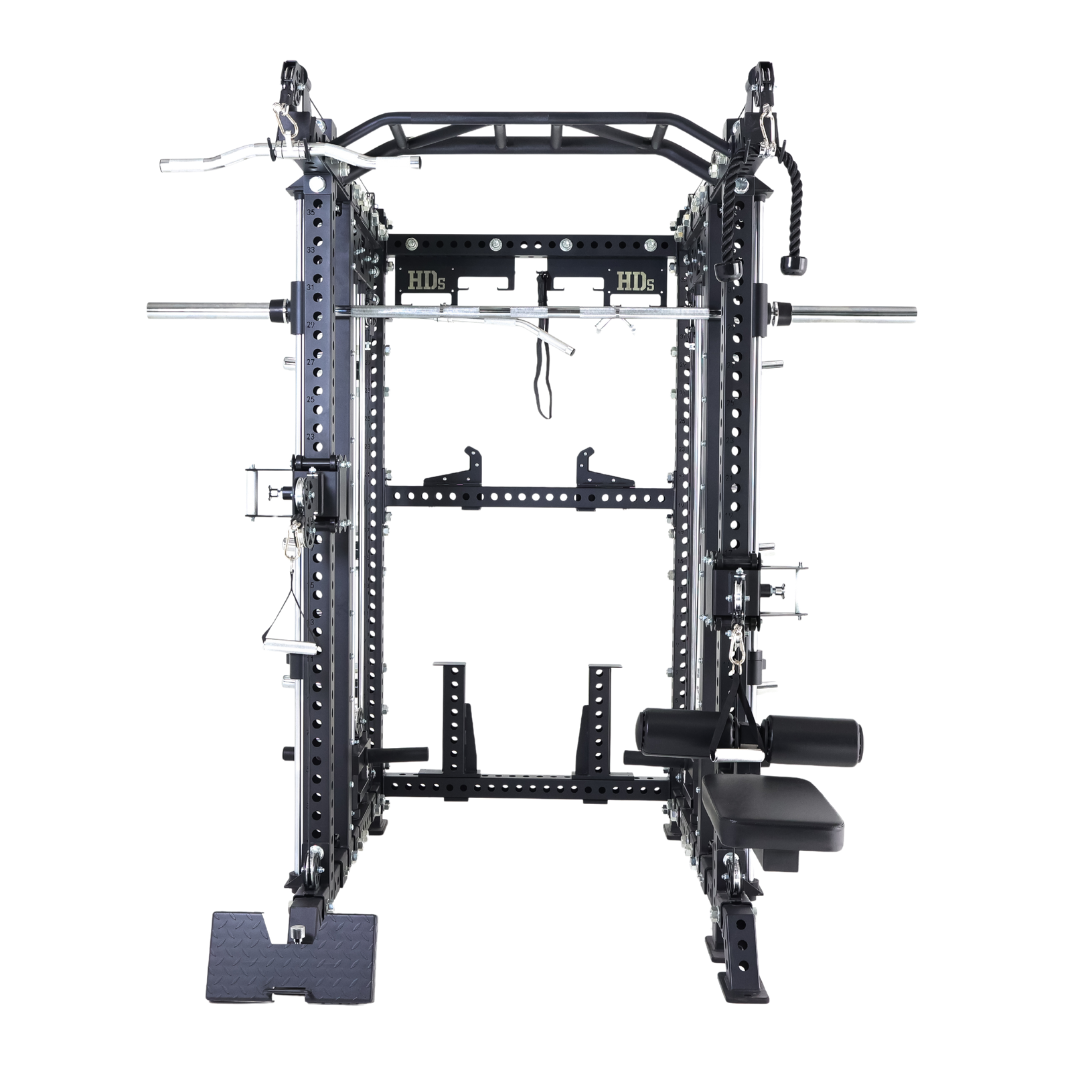

A commercial grade linear bearing smith machine with a 600lb weight capacity and more range of motion than competing models. The HDS shares the same custom low range smith machine from the HD1-S. The HDS wide body kit is now included with the current version. Please ignore the listing in gym attachments, that is for previous models.
1:1
Cable Ratio
11" - 78"
Smith Range
600 lb
Smith Machine Capacity
815 lb
Total Machine Weight
3 x 3 Expandable Ecosystem
Compatible with all HD attachments
Industry Leading Warranty
Built strong and backed with maximum coverage
Commercially Rated
Perfect for personal training studios
Detailed information
Specifications & What’s Included
Specs
What’s included
Footprint
Dimensions
Base depth (front foot to back foot)
65"
Max machine width (smith bar)
88"
Front upright width (olympic spec)
47.25"
Max height (high pulley brackets)
90"
Pullup Bar Height
88"
Upright size (metric)
3" × 3"
Steel gauge
12 gauge
Mounting hole size
1"
Hole spacing
2" oc
Total machine weight
815 lb
Cable System
High tower ratio
1:1
Adjustable trolley ratio
1:1
Cable type
2000lb test aircraft
Pulley material
Aluminum
Weight stack material
Steel
Guide rod type
Solid
Guide rod recommended lubricant
100% silicone spray
Squat Rack
J-hook max capcity
1200lb
Safety bar max capacity
1000lb
UHMW protection
Yes
J-hook style
Sandwhich
Warranty
Residential
Lifetime parts warranty, accessories excluded
Light Commercial
Three-year parts warranty, accessories excluded
Loaded with more from day one.
Integrated Stations
Low-range smith machne

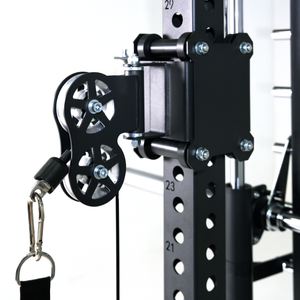

1:1 Functional trainer
Assisted pull-up station
Dual lat pulldown towers
Low row station
Free weight-barbell rack station
Rack & Safety
Premium sandwich J-hooks
Safety spotters
Extension feet
Included Accessories
Lat pulldown seat
Aluminum lat pulldown bar
Aluminum tricep/curl bar
Two aluminum D-handles
Tricep rope
Steel close-grip row attachment
Pullup Strap
Row foot plate
Rubber feet floor protection
Upgraded multi grip pullup bar
Schematic
Assembly Guide
Build with confidence and follow along step by step
Attention: This video shows the previous version and a new assembly video is in progress. This video can still be used but note two changes: #1 the trolley pulley now faces down and the cables route in from the bottom. #2 the smith machine guide rods and racking columns face outside as shown in the main product photo. Follow your user manual for these two steps and email us if you have a question. New video coming soon!
FAQ
Common Questions
Do you offer assembly?
We do! There is an assembly link in the shopping menu of our website if you would like to get a quote or hire an installer. We recommend waiting to purchase that service until your machine arrives.
How wide are the uprights?
All Olympic squat racks are about 47" wide, across all brands and models because an Olympic barbell determines the width. The space between the barbells sleeves. HD1 width is 47.25"
Why do some pictures show trolley handles on the inside and some on outside?
Like many parts of the HD models, its preference and can install either way. The user manual will recommend mounting them to the inside which keeps them out of the way of plates during free weight training. Most find them avoidable and prefer exterior mounting. If you change your mind after install, you can disassemble the trolley and reverse it without taking apart the machine. It can easily be done with 2 sets of hands in under 5 minutes.
What about leg extensions and leg curls?
We will not be making a rack attach leg ext/curl. They take up a lot of space when not in use. They are more difficult to install because they are heavy and harder to get on because you have to mount them high above the cable for full range. For those reasons most customers prefer a bench attached leg option that comes off easy and smaller to store when not in use. Or a dedicated leg ext/curl machine if you have the space.
Can the row plate be mounted on either side?
Yes, you can choose which side you install the port on during the assembly process.
