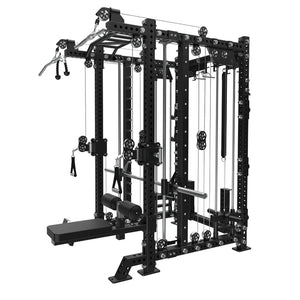

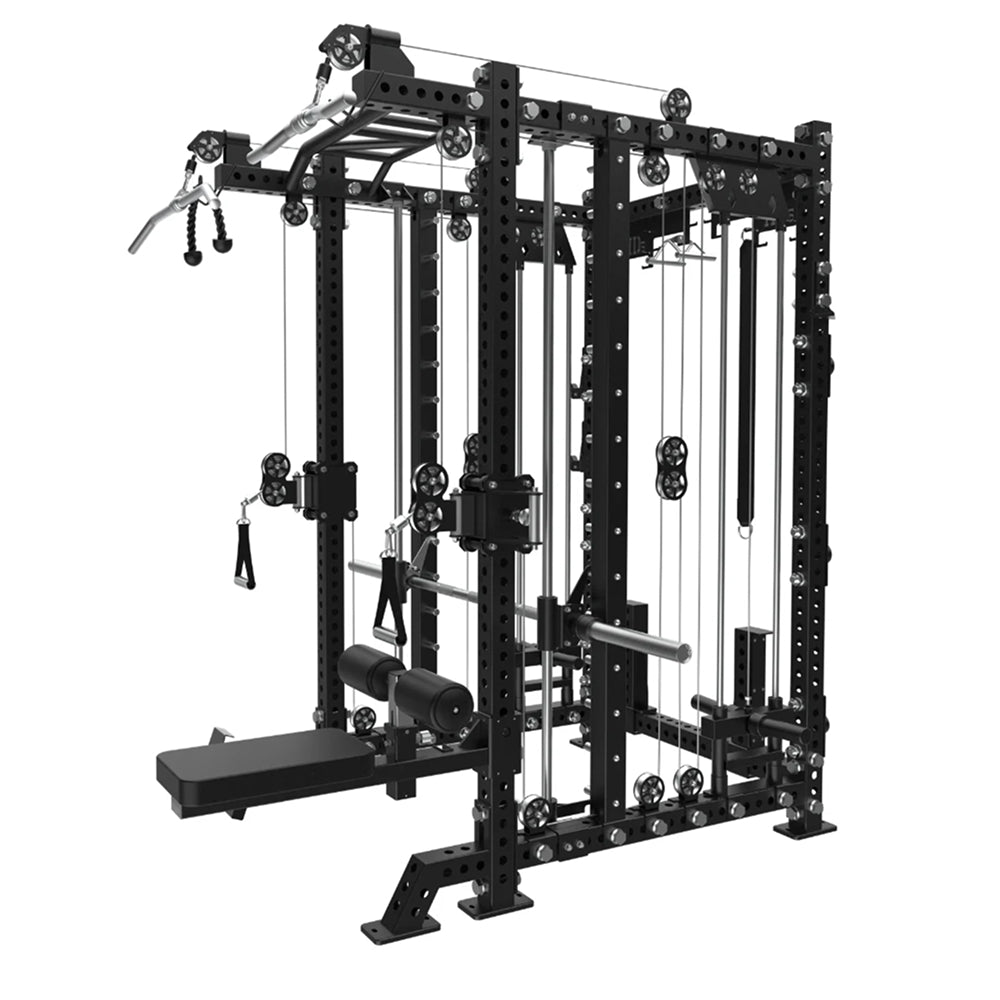

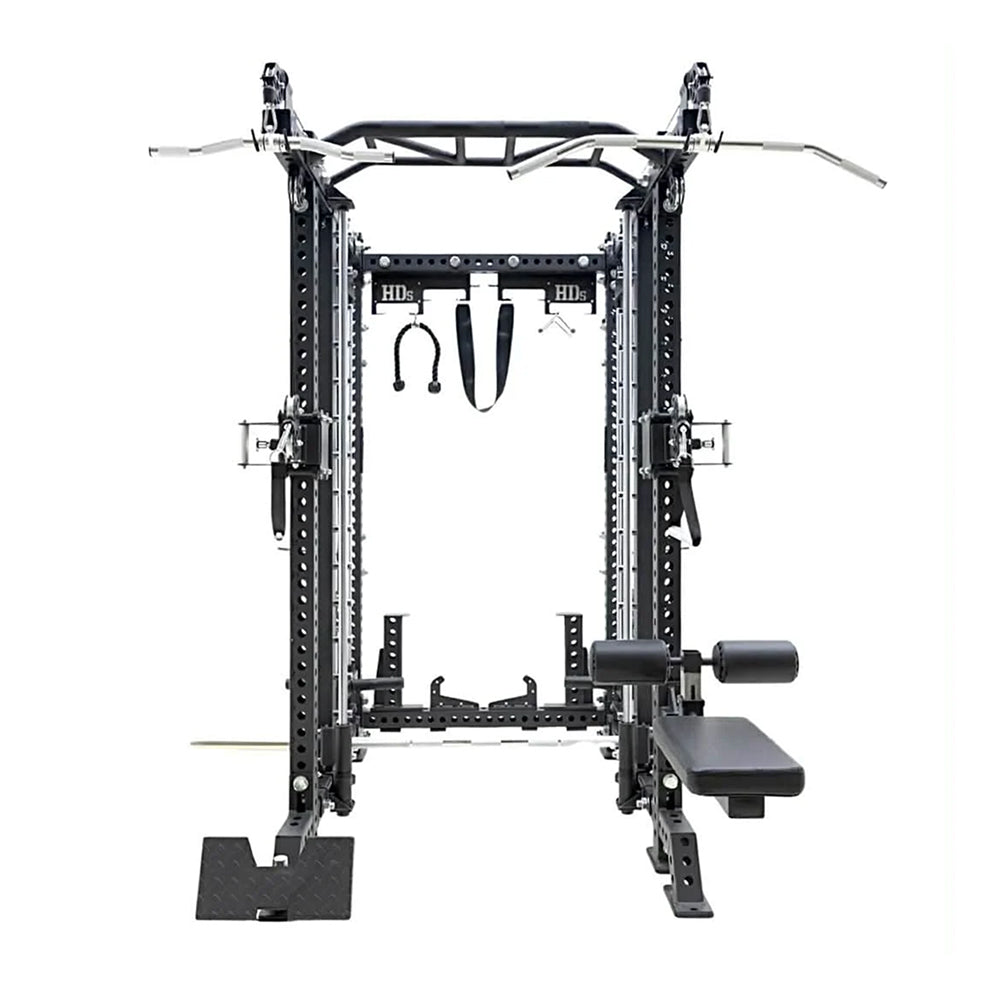

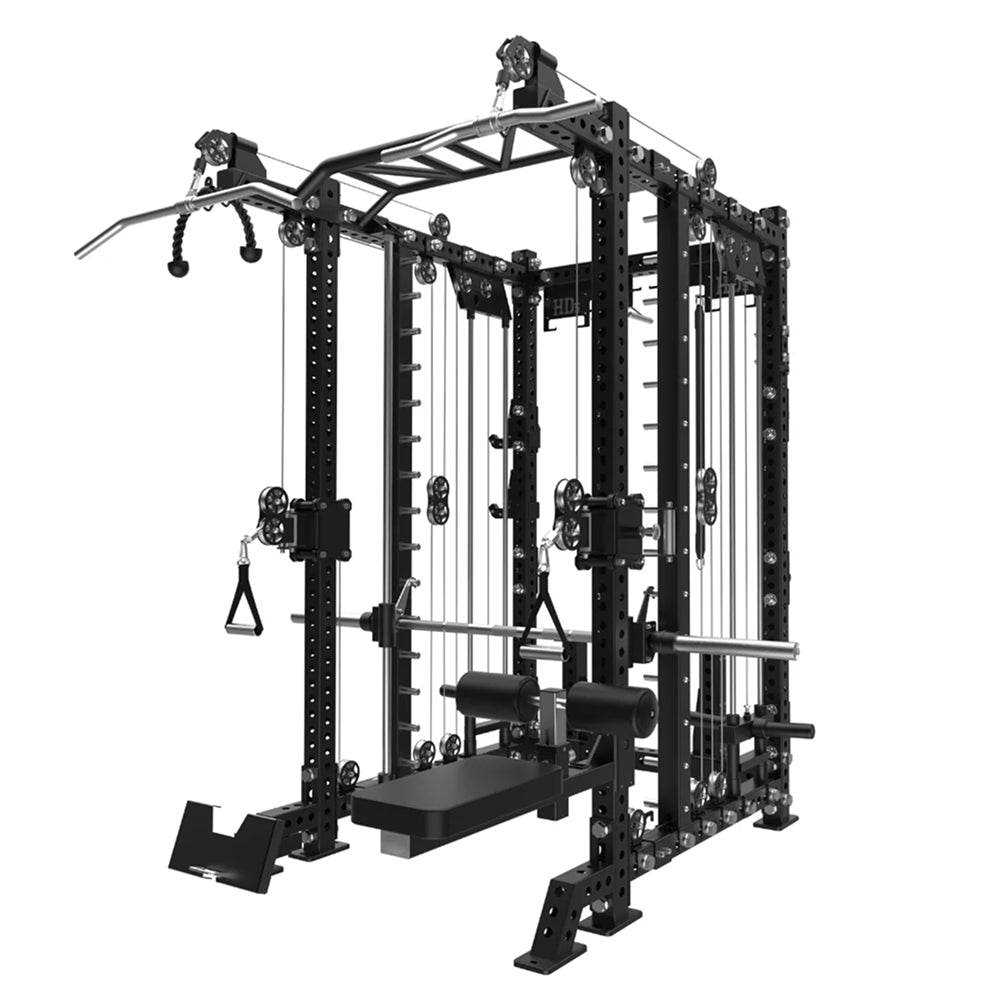

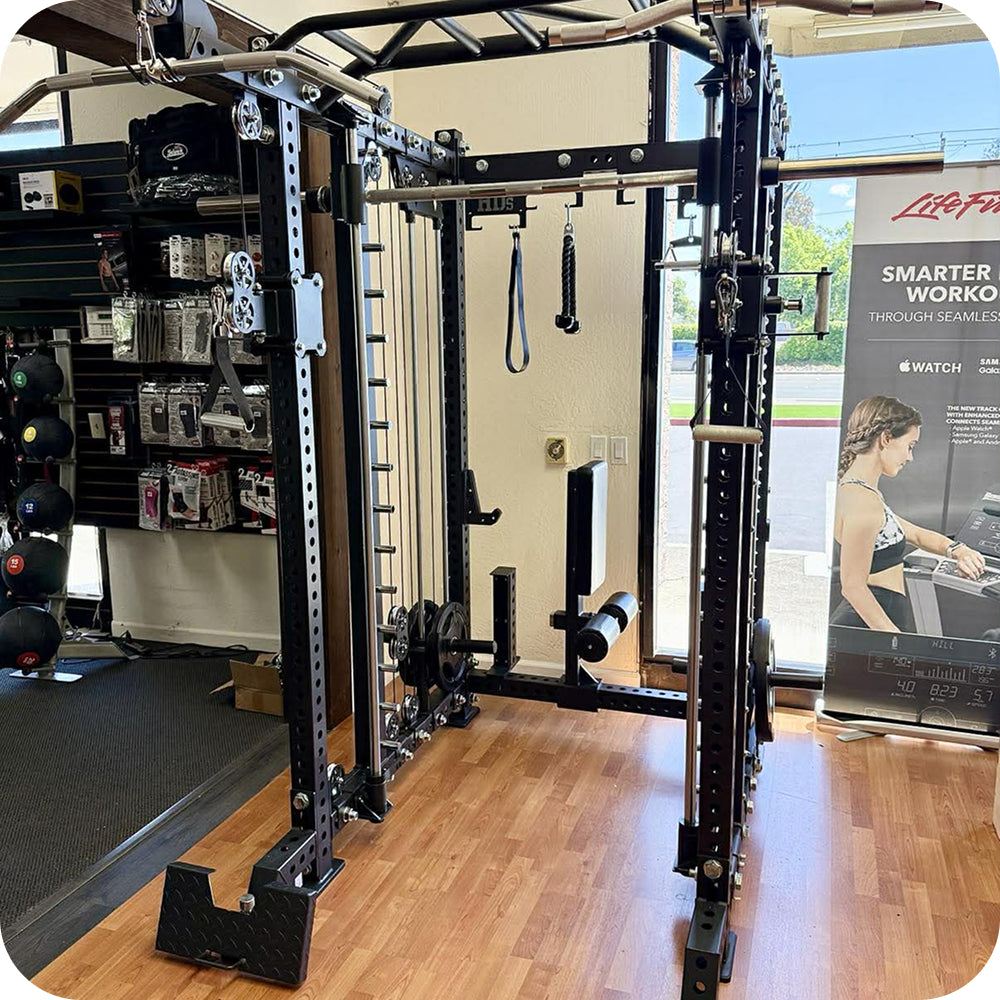

The HD1 series is our flagship design that we consider to be the best value for a properly spec’d and built machine. The HD1 and HD1-S are the same machine, but the S includes a smith machine. At the heart of the HD1 you’ll find the sought after 7.5FT, 11 gauge, 3X3 frame with 1” holes which brings you maximum durability and aftermarket capability for any additional attachments you may want to add in the future.
The cable section delivers well thought-out functionality. The 2:1 cable ratio on the functional trainer gives buttery smooth action for all your accessory movements. The dedicated high towers deliver a heavier load with a 1:1 cable ratio for slower, heavier pulls. This station not only gives you twice the usable weight but also solves the common overhead alignment problem found on standard machines. The HD1 delivers a proper form lat pulldown, directly overhead with a heavy cable ratio and lat seat included.
1:1 & 2:1
Cable Ratio
4' x 5'
Base Footprint
230 lb
Lat Pulldown
1075 lb
Total Machine Weight
3 x 3 Expandable Ecosystem
Compatible with all HD attachments
Industry Leading Warranty
Built strong and backed with maximum coverage
Commercially Rated
Perfect for personal training studios
Detailed information
Specifications & What’s Included
Specs
What’s included
Footprint
Dimensions
Base depth (front foot to back foot)
60.5"
Max machine width (plate storage)
70.5"
Front upright width (olympic spec)
47.25"
Max height (high pulley brackets)
90"
Pullup Bar Height
88"
Upright size (metric)
3" × 3"
Steel gauge
11 gauge
Mounting hole size
1"
Total machine weight
1075lb

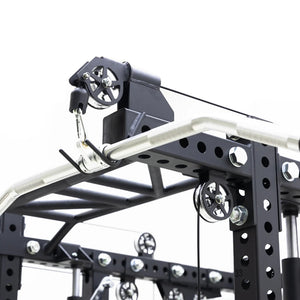

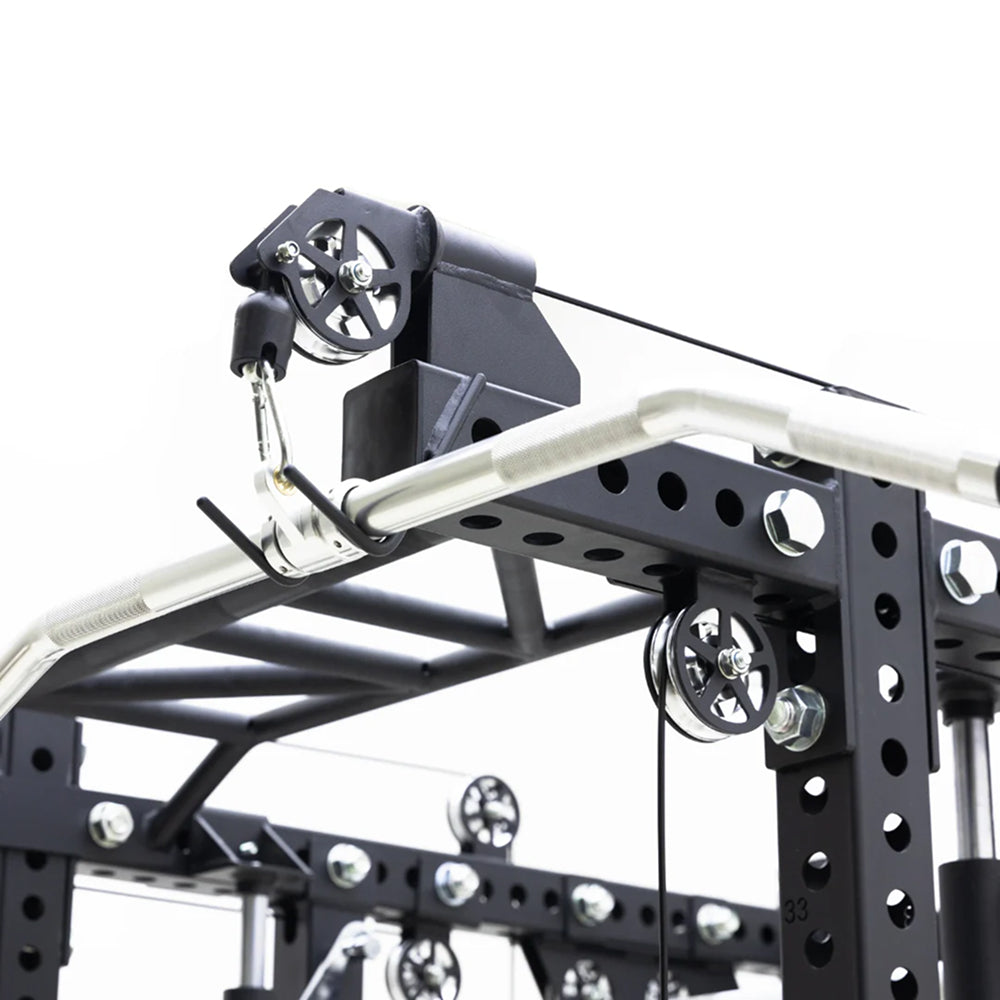

Cable System
High tower ratio
1:1 @ 115% (200lb = 230lb)
Adjustable trolley ratio
2:1 @ 50% (200lbs = 100lb)
Cable type
2000lb test aircraft
Pulley material
Aluminum
Weight stack material
Steel
Guide rod type
Solid
Guide rod recommended lubricant
100% silicone spray
Squat Rack
J-hook max capcity
1200lb
Safety bar max capacity
1000lb
UHMW protection
Yes
J-hook style
Sandwhich
Warranty
Residential
Lifetime parts warranty, accessories excluded
Light Commercial
Three-year parts warranty, accessories excluded
Loaded with more from day one.
Integrated Stations
Low-range smith machine
2:1 Functional trainer
Assisted pull-up station
Dual lat pulldown towers
Low row station
Free weight-barbell rack station
Rack & Safety
Premium sandwich J-hooks
Safety spotters
Extension feet
Included Accessories
Lat pulldown seat
Aluminum lat pulldown bar
Aluminum tricep/curl bar
Two aluminum D-handles
Tricep rope
Steel close-grip row attachment
Pullup Strap
Row foot plate
Barbell storage hook
6 Plate storage horns
Rubber feet floor protection
Upgraded multi grip pullup bar
Schematic
All hd1-s related videos
Assemble, explore and expand with confidence.
Blazzed HD1-S Assembly Guide (new model smith columns face outside)
Blazzed HD1-S Optional 1:1 Ratio
Low Pulley Kit
HD Captains Chair - Abs & Dips Option For All HD Machines
FAQ
Common Questions
Do you offer assembly?
We do! There is an assembly link in the shopping menu of our website if you would like to get a quote or hire an installer. We recommend waiting to purchase that service until your machine arrives.
Do you have an assembly guide?
Yes, the current assembly video is for the older version that had the smith machine brackets facing the inside. An updated video is being made now and this note will be removed when that video is live. The version on this product page can be used for everything except the smith portion which has two changes. The smith guide rods and racking columns now install on the outside, not facing in like in the video. Everything else is the same. New video on the way!
How does this compare to the BX2?
The BX2 is essentially a compact version of the HD1-S. The biggest difference is that the HD models have a much larger frame which is designed to be compatible with aftermarket attachments that dont work on smaller frames. The HD models are also taller which can work better for taller users. We built a lot of the same features into the BX2 as we did on the HD models and the BX2 comes with a lot of the same attachments. Because the BX2 uses a compact smaller frame, it is not compatible with aftermarket attachments. That being said, the BX2 is a beast and we consider it to be one of the best options for compact spaces. It to comes with a low range smith, 1:1 & 2:1 cable ratios and high capacity. If space is not a concern, the HD models will give a little more convivence and be more upgradable. If you have a diverse family, in your older years or working around injuries, the BX2 could be a better choice as everything on that machine is lighter and easier to set up.
How wide are the uprights?
All Olympic squat racks are about 47" wide, across all brands and models because an Olympic barbell determines the width. The space between the barbells sleeves. HD1-S width is 47.25"
Why do some pictures show trolley handles on the inside and some on outside?
Like many parts of the HD models, its preference and can install either way. The user manual will recommend mounting them to the inside which keeps them out of the way of plates during free weight training. Most find them avoidable and prefer exterior mounting. If you change your mind after install, you can disassemble the trolley and reverse it without taking apart the machine. It can easily be done with 2 sets of hands in under 5 minutes.
What other parts have install preference?
Trolley handles inside or out.
Pull-up bar fat grip in the front or rear.
Rear cross bar placement.
Weight stack stickers on the inside or outside.
Low row foot port on the left or right side.
Safety spotters on the smith or left off.
Barbell storage hook in the rear, side or interior.
Plate storage on the sides, rear, mounted inside the frame on back cross bars or mounted on the wall.
Do you offer heavier weight stacks?
We don't, because it eats valuable cable travel needed for a 1:1 ratio. You can use the HD adder pin listed in the gym attachments category to add additional weight to the stack. Keep in mind, our towers are @ 115% which gives a true 230lb pull.
What about leg extensions and leg curls?
We will not be making a rack attach leg ext/curl. They take up a lot of space when not in use. They are more difficult to install because they are heavy and harder to get on because you have to mount them high above the cable for full range. For those reasons most customers prefer a bench attached leg option that comes off easy and smaller to store when not in use. Or a dedicated leg ext/curl machine if you have the space.
Can the row plate be mounted on either side?
Yes, you can choose which side you install the port on during the assembly process.
Have A Question?
We are here to help! We respond to all emails within 24 hours, sometimes a little slower on weekends.
HD1-S. Very pleased with this purchase. Excellent build quality for the price. Attachments are really nice. I looked at every brand I could find and this is the best bang for your buck out there right now
Placed a bet on Blazzed versus Force - and I am glad I did. The quality is there, and the service as well. I had a small issue with my Smith Bar, and the service team jumped on it right away. Resolved. I like this company.
Durable equipment. Honestly its just like going to the gym but in my own home. Best purchase I’ve made. Cables are smooth if installed correctly. Pay attention to the cable notches when installing and you won’t have problems.
Just got my BX2 delivered this morning and used it for the first time tonight. I am very impressed with the quality and ease of use with the attachments. It fits in my space like a glove. I have been eyeballing this system for months. I emailed them with several questions. They always responded quickly with no pressure to purchase. It arrived within 2 weeks from purchase. Delivery process was easy and efficient. My husband was not overly stressed with assembly which speaks volumes!
Super high quality compared to Major Fitness rack I placed with this one.
Smooth cables - I feel like I’m in a commercial gym but I’m just in my garage!
Super smooth and heavy duty. The attachments are great and the range of exercises I can do now exceeds my last machine. The weight stacks make it easy for everyone in the house to get a workout in.

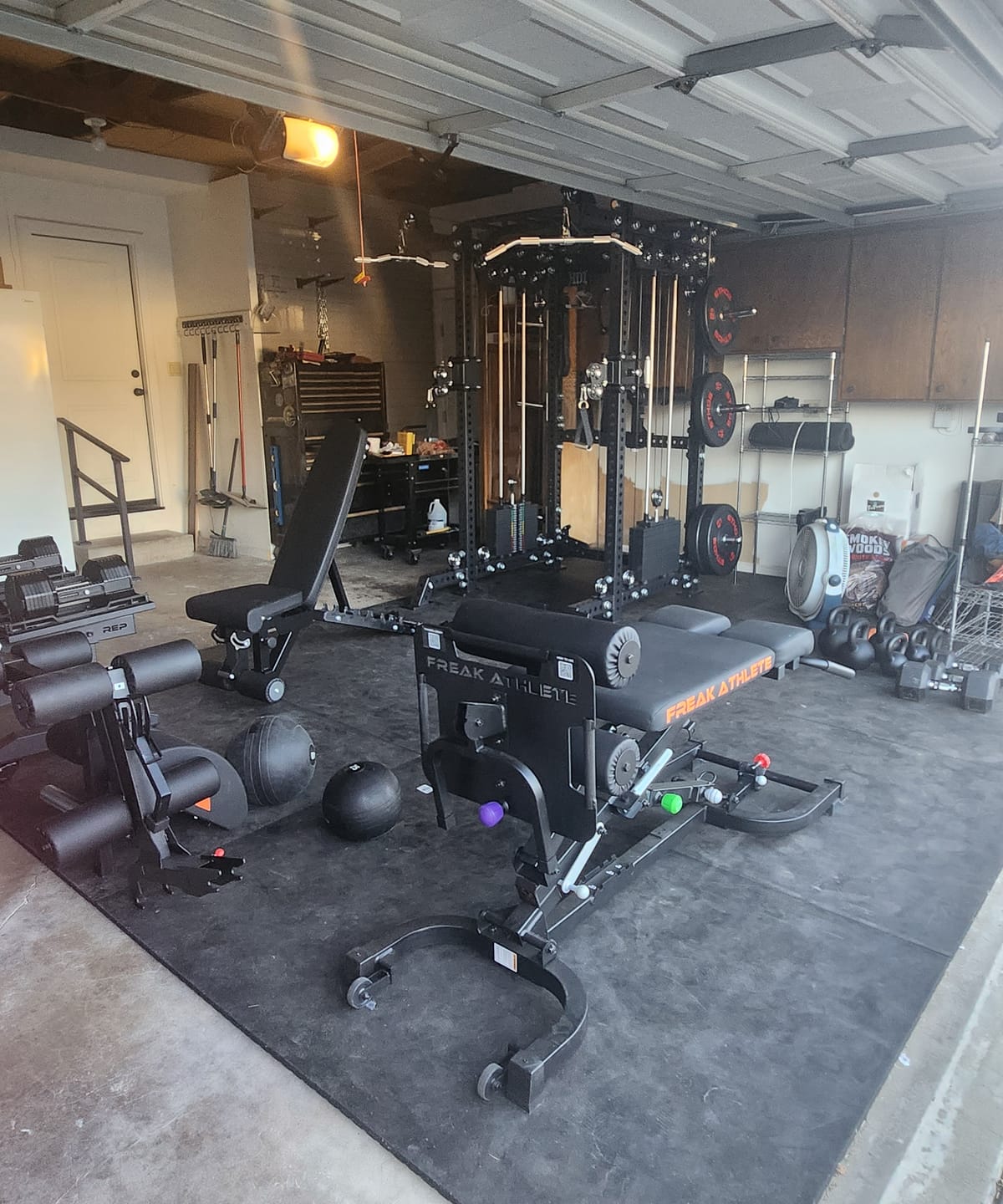

Everything and more than I expected! Great quality and not difficult to put together. Our new home gym is going to be legit now. So glad I did my homework and found the HD1.
